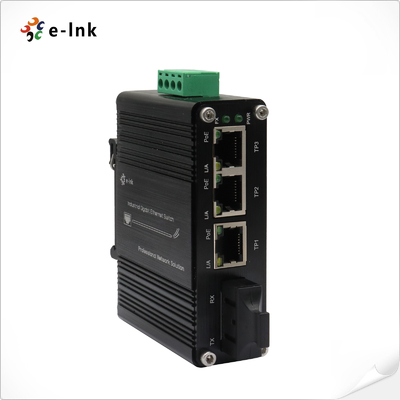

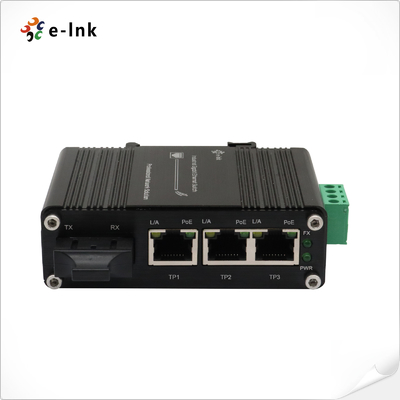

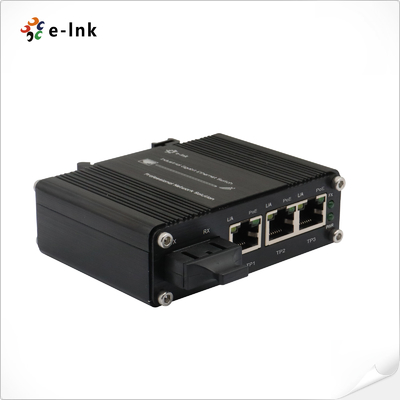

Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SC Ethernet Switch with 12~48VDC Input and Voltage Booster
Mini Industrial Solar Power PoE Switch Overview
The LNK-IMC103GP Series is a Mini Industrial Unmanaged Gigabit PoE Switch designed
for harsh industrial environments and solar-powered applications. It features 3 10/100/1000BASE-T RJ45 PoE+ ports
compliant with IEEE 802.3at, and 1 SC-type 1000Base-X fiber port, enabling long-distance fiber uplink connectivity.
The switch is able to operate efficiently even in low-voltage power scenarios, such as solar energy systems,
thanks to its support for 12~48VDC wide voltage input and a built-in voltage booster.
With a total Power over Ethernet (PoE) power budget of up to 90 watts, this product is ideally suited for
powering Internet Protocol (IP) cameras, wireless access points, or the Internet of Things (IoT) devices
directly through Ethernet cables.
The product has been constructed in a rugged IP40-rated aluminium housing, which offers excellent
vibration and shock resistance. It functions reliably in extreme temperatures ranging from -40°C to +75°C.
The switch has been certified by CE and FCC, and has passed a 100% burn-in test,
ensuring long-term reliability in critical applications such as surveillance, industrial automation,
and outdoor connectivity.

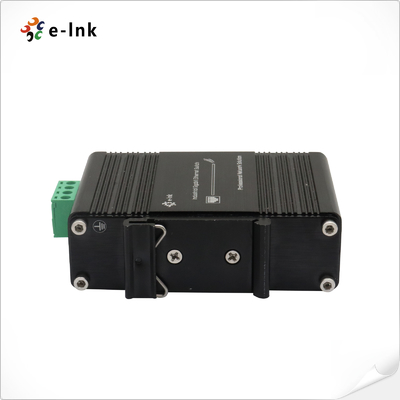

This compact, DIN-rail or wall-mountable switch is an affordable and dependable networking solution
for edge deployments in the energy, transportation, and smart city environments.
Mini Industrial Solar Power PoE Switch Features
LNK-IMC103GP-SFP present the following features:
► 3 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-3)
► 1 1000Base-X SC Port
► 12~48VDC wide range power input with power booster function
► Up to 90W PoE budget (48VDC), 90W PoE budget (24VDC), 60W PoE budget (12VDC)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail & Wall-mount installation
► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature
Mini Industrial Solar Power PoE Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
4 Mbit
|
|
Switch Fabric:
|
12Gbps
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)
|
|
Optical Port:
|
1 x SC 1000Base-X or 100Base-FX (auto detection)
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3af Power over Ethernet
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
PoE Budget:
|
Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 2-pin terminal block
|
|
Power Consumption:
|
<95W (Non-PoE<6W)
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Ethernet LINK Status
|
|
FX:
|
Fiber LINK Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.3Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial Solar Power PoE Switch Ordering Information
|
Model
|
Description
|
|
LNK-IMC103GP
|
Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m
|
|
LNK-IMC103GP-20
|
Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km
|
|
LNK-IMC103GPS-20A
|
Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km
|
|
LNK-IMC103GPS-20B
|
Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 12~48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
