10G Base-T to 10G Base-R Media Converter
10G Media Converter Overview

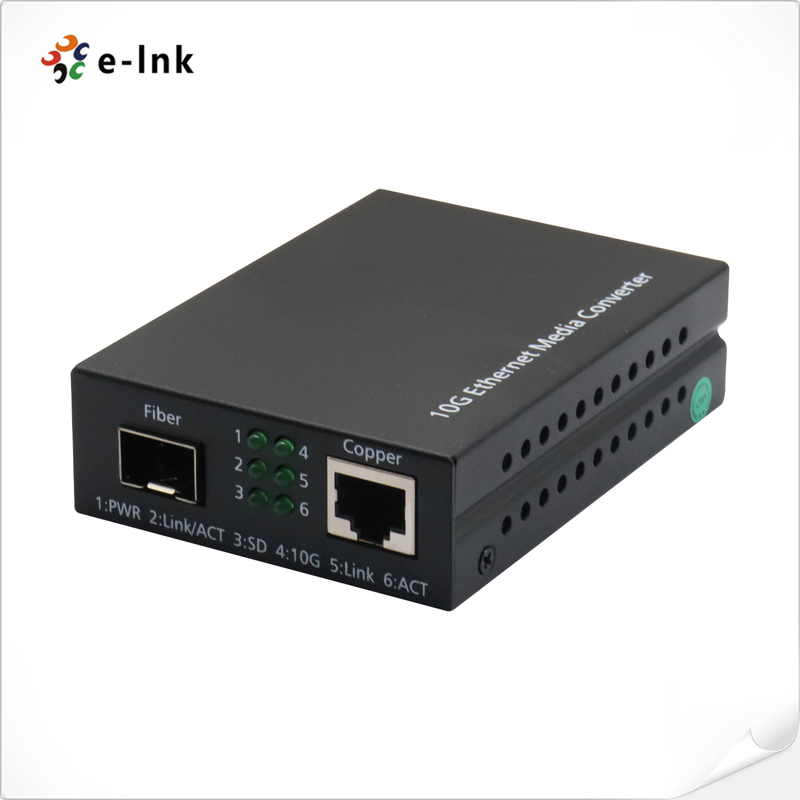

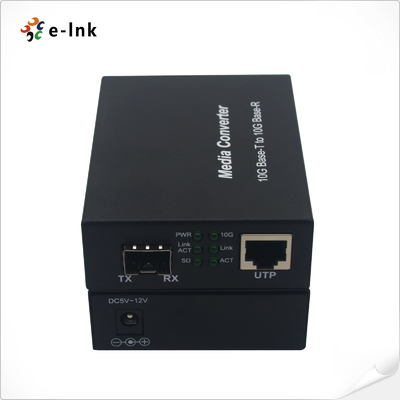

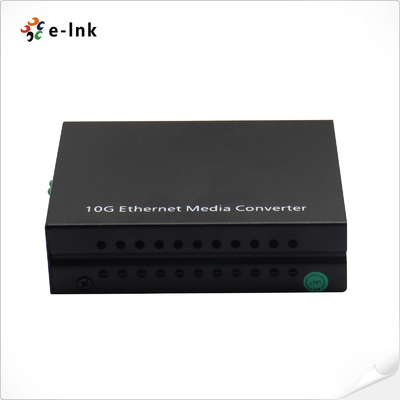

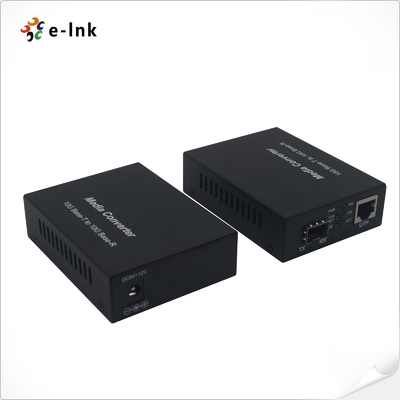

The E-link 10G Base-T to 10G Base-R Media Converter facilitates high-speed 10Gbps Ethernet conversion
between copper (10GBase-T RJ45) and fiber (10GBase-FX SFP+) networks. This product is equipped
with a high-performance Ethernet PHY chip, which guarantees low-latency, stable data transmission
for enterprise and data centre applications. This converter operates as a standalone unit
or can be rack-mounted in a 19" chassis for centralised deployment. Its plug-and-play installation,
industrial-grade durability, and flexible fibre compatibility (single-mode/multi-mode SFP+) make it ideal
for extending 10G networks, data centre interconnects, and high-bandwidth backbone links.
10G Media Converter Key Features
-
Supports jumbo frames to improve the transmission efficiency of large data packets
-
Transparent transmission, ultra-low latency , ensuring real-time data delivery
-
Support hot plug and play , easy to maintain and replace
-
Full status LED indication , intuitively displaying the working status
-
Easy installation , saving deployment time and labor costs
-
Stable and reliable long-distance connection to ensure continuous network operation
-
Multifunctional high-speed connection , adaptable to various application scenarios
-
Compact and portable body , space-saving and easy to carry
-
Plug and play , no complicated configuration required
10G Media Converter Technical Indexes
|
Standards
|
1000Base-T, 2.5GBase-T, 5Gbase-T, 10Gbase-T
1000Base-X, 2500Base-X, 5GBase-R , 10GBase-R
|
|
Media Supported
|
1000Base-T: Cat5 UTP/STP. MAX 100m;
2.5GBase-T: Cat5e UTP/STP. MAX 50m;
5GBase-T: Cat5e UTP/STP. MAX 50m;
10G Base-T: Cat6a UTP/STP. MAX 50m;
|
|
Port Type
|
RJ45, SFP Slot
|
|
Work Mode
|
1000Base-T to 1000Base-X
2.5GBase-T to 2500Base-X
5Gbase-T to 5GBase-R
10Gbase-T to 10GBase-R
|
|
 Support Modules
|
10GBASE-SR/LR/ER/ZR:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m;
9/125μm single-mode fiber optic cable, up to 10/40/80km
|
|
Power Supply
|
12V DC
|
|
Power
consumption
|
MAX 5W
|
|
Operation Temperature
|
0℃ to 55℃
|
|
Relative Humidity
|
5% to 80% (non-condensation)
|
10G Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-MC10G-SFP+
|
10G Base-T to 10G Base-R Media Converter, SFP+ Ports, not including SFP+ Modules
|
10G Media Converter Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure by technicians and man-made damage caused by non-natural disasters, the purchaser can directly go to the purchasing point to replace the same type of products.Or a product of comparable performance. If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
