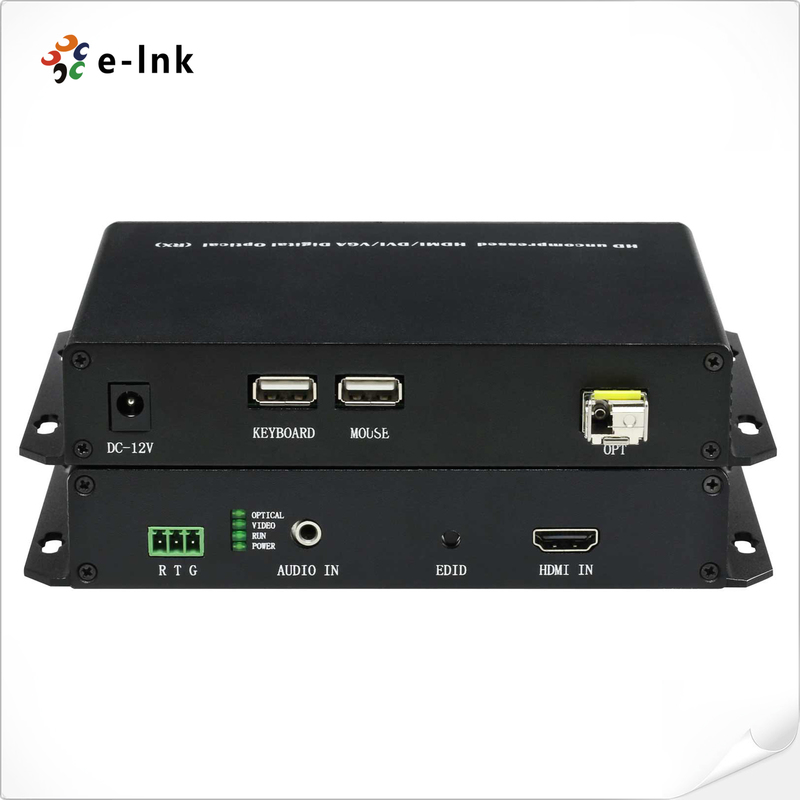

Multi-Channel HDMI Fiber Optic Extender with Audio KVM Up to 60km
Overview
The LNK-HDMI Series Fiber Extender delivers uncompressed full HD HDMI signals with external
analog audio, RS232, and KVM support over a single optical fiber. Available in 1/2/4/8 channel
models, it supports resolutions up to 1920×1200@60Hz with ultra-low latency. With advanced
optical SFP modules, plug-and-play setup, and strong anti-interference design, it ensures
crystal-clear transmission up to 60km, making it ideal for broadcast, control centers, and
professional AV applications.
Features
Uncompressed HDMI transmission up to 60km via fiber
Supports resolutions up to 1920×1200@60Hz
Available in 1/2/4/8 channel models for scalable deployment
External analog audio (3.5mm) & RS232 interface
KVM extension with USB ports for remote control
Automatic display mode detection & equalization
HDMI 1.3b & HDCP 1.2 compliant
Built-in ESD protection for reliable performance
Low power consumption (<5W per unit)
Plug-and-play installation, no configuration required
Technical Indexes
| Temperature |
-5°C to +75°C |
| Humidity |
5 to 90 % RH (no condensation) |
| The signal of Input and output |
HDMI |
| Protocal |
HDMI1.3b,HDCP1.2 |
| Pixel band width |
300MHz |
| Video format |
800x600P60 1024x768P60
1280x800P60 1280x1024P60
1360x768P60 1366x768P60
1400x1050P60 1440x900P60
1600x900P60 1600x1200P60
1680x1050P60 1280x720P50
1280x720P60 1920x1080P24
1920x1080P25 1920x1080P30
1920x1080P50 1920x1080P60
1920x1080I60 1920x1080I50 1920x1200P60
|
| The signa of Audio input and output |
3.5MM Audio |
| Audio format |
44.1K,48K,96K,176K,192K |
| RS232 port |
3 ports industrial terminal |
| RS232 Baud rate |
Support 115200 and all below |
| RS 232 Data bits |
8 bits |
| KVM receiver port |
A USB port |
| KVM transmitter port |
B USB port |
| Fiber port |
LC |
| Fiber module |
SFP single mode |
| Fiber wavelength |
1550/1310nm |
| Fiber band width |
3Gbps |
| The Maximum transmission distance of HDMI and Audio |
10KM/20KM/40KM/60KM |
| Input voltage |
DC 12V,inside + outside - |
| Power consumption |
HDMI receiver 4W HDMI transmitter 4W |
| Device size |
109.5*152*29.3mm(length*width*height) |
| Packing box size |
328*273*90mm(length*width*height) |
| Weight |
1CH 3KG/Pair
2CH 5KG/Pair
4Ch 6KG/Pair
8CH 10KG/Pair
|
Ordering Information
| Item |
Description |
| LNK-HDMI-100 |
HDMI to Fiber Converter: 1-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
| LNK-HDMI-200 |
HDMI to Fiber Converter: 2-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
| LNK-HDMI-400 |
HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
| LNK-HDMI-800 |
HDMI to Fiber Converter: 4-Ch HDMI 1080P Video with external Audio, Compliant with HMDI 1.3 and HDCP 1.2 standard, Single Mode Fiber, 10KM, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
Application
